Homer-V3
Homer-V3
(JELAIR Photo)

Visual design:
Original 3D-model: Jon Marcure.
Dish: Unknown.
Additional design: Jacob Larsen (2003).

JELAIR

Development status: in service

Date/Time-format: (YYMMDD@HHMM)

Latest calibration: 100628 @ 09:01 CET

First commissioned: 030423 @ 03:45 CET

JELAIR

Description:

The Homer-V3 is a 'telemetry-transmitter-module'. Its fondly nicknamed 'homer' in daily use, because pilots 'home in' on this module during approach procedures.

Dock homer to a radio-silent vessel (a vehicle without transponder capability) to keep track of that vessel's location and to receive ILS data when approaching it.

Homer was tested and calibrated using channel 248 and 249 (120.40 MHz and 120.45 MHz respectfully), but isn't limited to this channel-set.

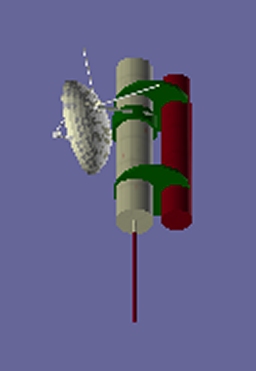

The picture shows a low-resolution computer rendered image of the Homer-V3.

JELAIR

Spec-sheet:
Main safety certification: "Orbiter-100606"
Safety certification record: "Orbiter-021202/3" through "Orbiter-100606"
Compatible with: "ShuttleFleetV4.5R0" (scenario example)
Length: 6 meters.
Mass weight: 2,817 kg.
Rated thrust (prograde): 0 newton (0 AUN).
Rated thrust (retrograde): 0 newton (0 AUN).
Rated thrust (hover): 0 newton (0 AUN).
Rated thrust (attitude): 1000 newton.
Fuel specific impulse (Isp): 400 sec (4,000 m/s)
Fuel load: 1,000 kg.
Nominal PAX capacity: ~ 1 (for an estimated maximum duration of 12 hours)

JELAIR

Pilots Operating Manual:

Major warnings:

None


Advisories:

None


Current list of 'proposed handling' for various scenarios:

T/O
As payload on launch vehicle

Landing
Not advised/no current proposed procedures

Docking
#1:Request docking clearance (not needed for module assembly dockings)
#2:Approach head-on and aim the HUD 'victor'-targetsights on center of target dockring by linear-thruster movement.

Broadcast activation in earlier versions of homer was activated manualy, but is now automated (provided homer's onboard flight-computer is programmed before launch)
To program it; indclude this entry to the homer data-set:
XPDR 248
Channel 248 yields a frequency of 120.40 MHz (for another frequency, select another channel).
Homer should now start broadcasting the transponder signal automaticaly when jettisoned from the spaceshuttle.
(See an example of what homer's data-set might look like with the transponder channel programmed in the scenario.scn datafile: scenario-example )
